Supply Chain

extensions [
  matrix
  table]

globals [
  safety_values
  watching
  promotion
  stocks_h
  costs_h
  ret_list]

breed [factories factory]
breed [distributors distributor]
breed [retailers retailer]
breed [customers customer]

turtles-own [demand stock strategy]

Factories-own [
  production_rate
  reorder_point
  orders
  available_stock
  clients
  daily_sales
  sales
  lost_sales
  forecast
  holding_cost
  order_cost
  total_cost
]

distributors-own [
  EOQ
  next_review
  reorder_point
  orders
  available_stock
  suppliers
  supplier_score
  supplier0
  clients
  daily_sales
  sales
  lost_sales
  forecast
  placed_orders
  holding_cost
  order_cost
  total_cost
]

retailers-own [
  EOQ
  next_review
  reorder_point
  suppliers
  supplier_score
  supplier0
  clients
  daily_sales
  sales
  lost_sales
  forecast
  placed_orders
  holding_cost
  order_cost
  total_cost
]

customers-own [
  next_review
  daily
  suppliers
  supplier_score
  supplier0
]

to setup
  ;; (for this model to work with NetLogo's new plotting features,
  ;; __clear-all-and-reset-ticks should be replaced with clear-all at
  ;; the beginning of your setup procedure and reset-ticks at the end
  ;; of the procedure.)
  __clear-all-and-reset-ticks
  ask patches [set pcolor white]
  set promotion [0 0 0]          ;Retailer 1, Impact 2, Until 3
  set stocks_h [] ;Customer, Retailer, Distributor, Factory
  set costs_h []  ;Retailer, Distributor, Factory
  set safety_values table:make
  table:put safety_values 0.50 0
  table:put safety_values 0.55 0.125661347
  table:put safety_values 0.60 0.253347103
  table:put safety_values 0.65 0.385320466
  table:put safety_values 0.70 0.524400513
  table:put safety_values 0.75 0.67448975
  table:put safety_values 0.80 0.841621234
  table:put safety_values 0.85 1.036433389
  table:put safety_values 0.90 1.281551566
  table:put safety_values 0.95 1.644853627

  create-Factories Fact [
   set size 6
   set color red
   set label (word "Factory " [who] of self "     ")
   set orders []
   let s read-from-string first(Inventory_Policy)
   ifelse s = 4
   [set strategy (random 3) + 1]
   [set strategy s]
  ]

  create-distributors Distr1 [
   set size 5
   set color blue
   set suppliers []
   set supplier_score []
   set orders []
   set placed_orders []
   set label (word "Distr." [who] of self "     ")
   let s read-from-string first(Inventory_Policy)
   ifelse s = 4
   [set strategy (random 3) + 1]
   [set strategy s]
  ]

  create-retailers Distr2 [
   set size 4
   set color green
   set suppliers []
   set supplier_score []
   set placed_orders []
   set label (word "Ret. " [who] of self "   ")
   let s read-from-string first(Inventory_Policy)
   ifelse s = 4
   [set strategy (random 3) + 1]
   [set strategy s]
  ]

  ask turtles with [breed != customers][
    set daily_sales []
    set clients []
    set sales []
    set lost_sales []
    set forecast []
    set holding_cost []
    set order_cost []
    set total_cost []]

  create-customers Clients_N [
   set size 1
   set color 3
   set suppliers []
   set supplier_score []
   set demand round(random-normal Demand_W DS_D)
   set daily round(demand / 7)
   let s read-from-string first(Customers_Strategy)
   ifelse s = 3
   [set strategy (random 2) + 1]
   [set strategy s]
  ]

  set-default-shape Factories "dist0"
  set-default-shape distributors "dist1"
  set-default-shape retailers "dist2"
  set-default-shape customers "person"
  ask turtles [find_patch]
  find_nearest
  update_clients 0
  update_market
  update_clients 0
  setup_parameters
  create_network
  update_plots
end

to go
  send_products
  buy_products
  main_sequence
  update_clients 1
  create_network
  update_plots
  purge
  evaluate_results
  print_watch
  tick                 ;Next Day
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;; SETUP SUBROUTINES ;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to find_patch
  setxy random-xcor random-ycor
  while [any? other turtles-here]
      [find_patch]                 ; keeps running until each patron is alone on patch
end

to find_nearest
  ask turtles with [breed != factories]
  [let d []
   if breed = customers [set d sort([who] of retailers)]
   if breed = retailers [set d sort([who] of distributors) ]
   if breed = distributors [set d sort([who] of factories) ]
   foreach d
     [let temp2 []
       set temp2 lput(?) temp2
       set temp2 lput(distance turtle ?) temp2
       set suppliers lput temp2 suppliers]
   set suppliers sort-by [last ?1 < last ?2] suppliers
   set supplier_score map [int(last ?) + int(((last ?) - int(last ?)) * 10) / 10] suppliers]
end

to update_clients [flag]
  ifelse flag = 0
  [ask turtles with [breed != factories] [
    let m min(supplier_score)
    let p position m supplier_score
    set supplier0 first(item p suppliers)]
  ask turtles with [breed != customers] [
    let n [who] of self
    set clients sort([who] of turtles with [(breed = retailers or breed = distributors or breed = customers) and supplier0 = n])]
  ask turtles with [breed = distributors or breed = factories] [
    foreach clients [set orders lput [0 0] orders]]]
  [ask customers [
    let m min(supplier_score)
    let p position m supplier_score
    set supplier0 first(item p suppliers)]
  ask retailers [
    let n [who] of self
    set clients sort([who] of turtles with [(breed = retailers or breed = distributors or breed = customers) and supplier0 = n])]]
end

to create_promotion
  ;Simple method: Increase de demand in some specific retailer choose for the user
  let list1 read-from-string user-input "Create a promotion [a b c] (retailer a, impact b (1 to 10), during c periods"
  ifelse is-list? list1 and length(list1) = 3
  [let p item 0 list1
  let i item 1 list1
  let c (item 2 list1) + ticks
  let l []
  set l lput(p) l
  set l lput(i) l
  set l lput(c) l
  set promotion l
  user-message (word "Today a promotion will occur at store " p)
  if Score_Retailers? = true
  [ask customers [let list2 map [first ?] suppliers
    let m position p list2
    set supplier_score (replace-item m supplier_score (item m supplier_score - (random-float item 1 list1)))]]
  ]
  [user-message (word "The array doen't have a valid format, pleas try again")]
end

to create_network
  ask links [die]
  ifelse Show_Network = true [
    ask customers [
      if supplier0 != nobody
      [create-link-to retailer supplier0
      [set color gray + 3]]]
    ask retailers [
      create-link-to distributor supplier0
      [set color green]]
    ask distributors [
      create-link-to factory supplier0
      [set color blue]]
    set ret_list sort([who] of retailers)
    let dd []
    ;let ddd sort(retailers)
    foreach ret_list
    [set dd lput(count(links with [end2 = retailer ?])) dd]
    set-current-plot "Clients per Retailer"
    clear-plot
    foreach dd
    [plot ?]]
  [ask links [die]
    set-current-plot "Clients per Retailer"
    clear-plot]
end

to setup_parameters
  ask customers [
    set stock random demand
  ]
  ask retailers [
    set stock round(sum([demand] of customers) / count(retailers)) * 5      ;All agents of the same type starts with the same stock
    set demand mean([daily] of customers) * length(clients) * 1
  ]
  ask distributors [
    set stock round(sum([stock] of retailers)) * .5    ;All agents of the same type starts with the same stock
    set demand mean([demand] of retailers) * length(clients) * 1
  ]
  ask Factories [
    set stock round(sum([stock] of distributors))
    set production_rate round(sum([demand] of customers) * 10)
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;; GO SUBROUTINES ;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to update_market
  ask turtles with [breed != customers and clients = []] [die]
end

to send_products
  ask turtles with [breed = distributors or breed = factories]
  [let list1 map [last ?] orders
   let list2 filter [? = ticks] list1
   if length(list2) > 0 and max(list2) > 0
   [let attending filter [last ? = ticks] orders
     set list2 []
     let list3 []
     foreach attending [
       set list2 lput(item (position ? orders) clients) list2
       set list3 lput(first(item(position ? orders) orders)) list3]
     let i 0
     while [i < length(list2)] [
     ask turtle (item i list2) [
       set stock (stock + item i list3)]
     set i i + 1]
     set i 0
     while [i < length(orders)]
     [if last(item i orders) = ticks
       [set orders replace-item i orders [0 0]]
       set i i + 1]]
  ]
end

to buy_products
  ;Customers go shopping according to their demand and their stock
  let list1 []
  ask turtles with [breed = retailers or breed = distributors or breed = factories ][
    set daily_sales []
    set lost_sales []]
  ask customers [
    let dem 0
    ifelse strategy = 1
    [set dem daily]
    [set dem round(daily * 4)]
    if promotion != [0 0 0] and member? who [clients] of retailer supplier0
    [set dem round(dem * random-float (item 1 promotion))]
    ifelse stock < dem and next_review = ticks [
        let agent [who] of self
        let d (dem + (dem - stock))
        ifelse [stock] of retailer (supplier0) >= d
        [ask retailer (supplier0) [
          set stock stock - d
          set daily_sales lput d daily_sales
          set lost_sales lput 0 lost_sales]
        let dd []
        set dd lput agent dd
        set dd lput d dd
        set list1 lput dd list1
        set stock stock - daily + d
        if Score_Retailers? = true
        [score_supplier who -0.01]]
        [ask retailer (supplier0) [set lost_sales lput dem lost_sales]
         if Score_Retailers? = true
         [score_supplier who 2 ]]
        ifelse strategy = 2
        [set next_review ticks + 3]
        [set next_review ticks + 1]]
      [ifelse stock - dem >= 0
        [set stock stock - dem]
        [set stock 0]
       set next_review ticks + 1 ]]
  ask retailers [
    update_sales
    if strategy != 3
    [set next_review ticks + 1]]
end

to update_sales
  let es sum(daily_sales)
  let ls sum(lost_sales)
  let l []
  set l lput es l
  set l lput ls l
  set sales lput l sales
end

to main_sequence
  ask retailers [
    update_forecast
    place_orders
    update_costs]
  ask distributors [
    update_sales
    update_forecast
    place_orders
    update_costs]
  ask factories [
    update_sales
    if stock < reorder_point
    [set stock stock + production_rate]
    update_forecast
    update_costs]
  ask customers [update_demand]
end

to update_forecast
  ;Retailers, Distributors and Factories update their expectations
  let forecasting []
  set forecast []
  let temp_demand 0
  if length(sales) > 0 [set temp_demand map [sum(?)] sales]
  let ds 0
  ifelse (length(sales) > 2) and (max(temp_demand) != 0)
  [set forecast matrix:forecast-linear-growth (temp_demand)
    set ds standard-deviation temp_demand]
  [set forecast lput(round(demand / 7)) forecast
    set forecast lput(round(demand / 7)) forecast
    set forecast lput(0) forecast
    set forecast lput(0) forecast]
  let b item 1 forecast
  let a item 2 forecast
  let t length(sales)
  let i 1
  while [i <= 7] [
    set forecasting lput(t * a + b) forecasting
    set i i + 1
    set t t + 1]
  set demand round(sum(forecasting))
  if demand < 0 [set demand 0]
  let dailyd demand / 7
  let Lead_Time Lt0
  if breed = retailers [set Lead_Time Lt1]
  let z table:get safety_values SS_%
  if breed != factories
  [set EOQ round(sqrt(2 * demand * 52 * K / (HC * Product_cost)))]
  set reorder_point round(dailyd * Lead_Time + z * ds)
end

to print_watch
  if watching != 0
  [
   show (word "At the period " ticks " the agent " watching " update its expectations :")
   if ([breed] of turtle watching != customers) [
     show (word "Sales " [sales] of turtle watching)
     show (word "Forecast " [forecast] of turtle watching)]
   show (word "Demand " [demand] of turtle watching)
   if ([breed] of turtle watching != customers and [breed] of turtle watching != factories) [
     show (word "EOQ " [EOQ]  of turtle watching)
     show (word "Reorder Point " [reorder_point] of turtle watching)]
   show (word "Stock " [stock] of turtle watching)
  ]
end

to follow_someone
  ifelse watching = 0
  [let l read-from-string user-input "What agent do you want to inspect?"
    set watching l
  watch turtle watching
  inspect turtle watching]
  [set watching 0
    reset-perspective]
end

to place_orders
  ;Retailers and Distributors place orders according to their stock and forecasting
  if stock <= reorder_point [
    let p position [who] of self ([clients] of turtle supplier0)
    let actual_order first(item p ([orders] of turtle supplier0))
    if actual_order = 0 [
      let comande 0
      let lead_time Lt0
      if breed = retailers
      [set lead_time Lt1]
      ifelse strategy = 1
      [set comande round(EOQ - stock)]
      [set comande round(EOQ + (demand / 7) * lead_time)]
      let disp 0
      ask turtle supplier0 [
        let delivery ticks + lead_time
        let g []
        let ll 0
        ifelse stock > comande
        [set disp comande]
        [set disp stock
          set ll comande - disp]
        set g lput disp g
        set g lput delivery g
        set orders replace-item p orders g
        set stock stock - disp
        set daily_sales lput(disp) daily_sales
        set lost_sales lput(ll) lost_sales
      ]
      set placed_orders lput(disp) placed_orders]
  ]
end

to update_demand
  ifelse promotion = [0 0 0]
  [set demand round(random-normal Demand_W DS_D)
  set daily round(demand / 7)]
  [let p item 2 promotion
    if ticks = p [set promotion [0 0 0]]
  ]
end

to update_costs
  set holding_cost lput (HC * stock * Product_cost) holding_cost
  ifelse breed != factories
  [if (length(placed_orders) = 0) OR (length(placed_orders) != length(holding_cost))
  [set placed_orders lput 0 placed_orders]
  ifelse last(placed_orders) = 0
  [set order_cost lput 0 order_cost]
  [set order_cost lput K order_cost]
  set total_cost lput (last(order_cost) + last(holding_cost)) total_cost]
  [set total_cost lput (last(holding_cost)) total_cost]
end

to evaluate_results
  ;Collect statistics at the end of each period
  let l []
  ifelse first(promotion) = 0
  [set l lput (word ticks "-Reg") l]
  [set l lput (word ticks "-P-" item 0 promotion "-" item 1 promotion) l]
  set l lput(sum([stock] of customers)) l
  set l lput(sum([stock] of retailers)) l
  set l lput(sum([stock] of distributors)) l
  set l lput(sum([stock] of factories)) l
  set stocks_h l
  set l []
  let s 0
  foreach ([total_cost] of retailers) [set s s + (last(?))]
  set l lput(s) l
  set s 0
  foreach ([total_cost] of distributors) [set s s + (last(?))]
  set l lput(s) l
  set s 0
  foreach ([total_cost] of factories) [set s s + (last(?))]
  set l lput(s) l
  set costs_h l
end

to purge
  ask turtles with [breed != customers]
  [if length(sales) > 100
    [let l length(sales)
      set sales sublist sales (l - 100) l
      ]]
end

to score_supplier [a b]
 ;agent A, score B
 ask turtle a [
  let list1 map [first ?] suppliers
  let p position supplier0 list1
  if item p supplier_score + b >= 0
  [set supplier_score replace-item p supplier_score (item p supplier_score + b)]
 ]
end

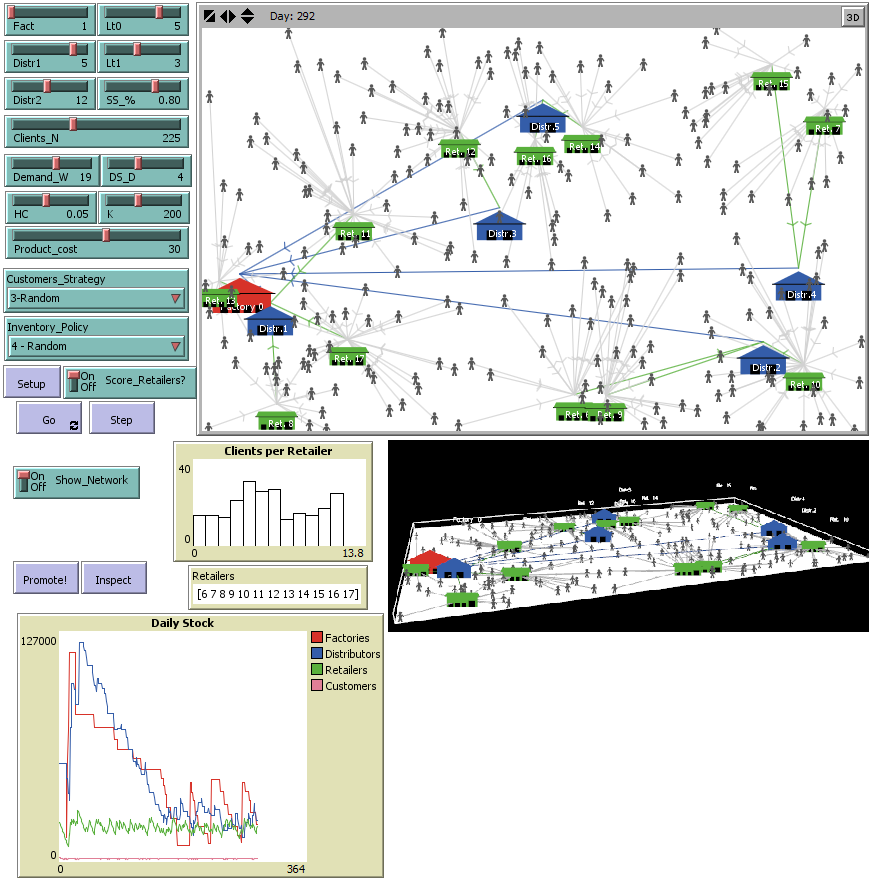

to update_plots
  set-current-plot "Daily Stock"
  let s []
  ;Customers
  set-current-plot-pen "Customers"
  plot sum([stock] of Customers)
  ;Retailers
  set-current-plot-pen "Retailers"
  plot sum([stock] of retailers)
  set s lput(sum([stock] of retailers)) s
  ;Distributors
  set-current-plot-pen "Distributors"
  plot sum([stock] of distributors)
  set s lput(sum([stock] of distributors)) s
  ;Factories
  set-current-plot-pen "Factories"
  plot sum([stock] of Factories)
  set s lput(sum([stock] of Factories)) s
  ;set-plot-y-range 0 max(s)
end
